Violin plots with pattern overlays

A drop-in replacement for ggplot2::geom_violin() that adds a pattern aesthetic. The pattern is clipped to the exact violin outline using the same device-independent in-R geometry as geom_polygon_pattern().

Usage

geom_violin_pattern(
  mapping = NULL,
  data = NULL,
  stat = "ydensity",
  position = "dodge",
  ...,
  trim = TRUE,
  bounds = c(-Inf, Inf),
  scale = "area",
  quantile.colour = NULL,
  quantile.color = NULL,
  quantile.linetype = 0L,
  quantile.linewidth = NULL,
  na.rm = FALSE,
  orientation = NA,
  show.legend = NA,
  inherit.aes = TRUE
)

Arguments

mapping

Aesthetic mappings created by ggplot2::aes().

data

Data frame.

stat

Statistical transformation. Default "ydensity".

position

Position adjustment. Default "dodge".

...

Other arguments passed to the layer.

trim

If TRUE (default), trim the tails of the violin to the range of the data.

bounds

A length-2 numeric vector defining the minimum and maximum allowed values for the data. Default c(-Inf, Inf).

scale

How to scale the maximum width of each violin. One of "area" (default), "count", or "width".

quantile.colour, quantile.color

Colour for quantile lines. Default NULL (inherits from colour).

quantile.linetype

Line type for quantile lines. 0 (default) means no lines are drawn.

quantile.linewidth

Line width for quantile lines. Default NULL.

na.rm

If FALSE (default), missing values are removed with a warning.

orientation

Orientation of the layer. Default NA (automatic).

show.legend

Logical. Should this layer be included in the legend?

inherit.aes

If FALSE, overrides the default aesthetics.

Value

A ggplot2 layer.

Pattern aesthetics

In addition to all aesthetics accepted by ggplot2::geom_violin(), this geom accepts:

pattern

Character name of the pattern. One of "none", "hatch", "crosshatch", "horizontal", "vertical", "dots", "weave", or a custom pattern registered with register_pattern(). Each base pattern (except "none") also has _dense and _sparse variants (e.g. "hatch_dense", "dots_sparse") for pre-set tighter or looser spacing.

pattern_colour

Colour of pattern lines/dots. Default "black".

pattern_linewidth

Line width for line-based patterns. Default 1.

pattern_spacing

Spacing between pattern elements in millimetres. Default 5. Smaller values produce denser patterns; larger values produce sparser patterns. Named density variants (e.g. "hatch_dense") bake in a pre-set spacing multiplier but still respect explicit pattern_spacing values.

pattern_angle

Angle in degrees for hatch patterns. Default 45.

pattern_size

Dot radius in millimetres for the "dots" pattern. Default 0.5.

Limitations

stat = "identity" requires a violinwidth column. The default stat ("ydensity") computes violinwidth automatically. If you supply stat = "identity" with pre-computed density data, your data frame must include a violinwidth column (values in [0, 1] representing the normalized half-width at each y level). If the column is absent, geom_violin_pattern() emits a message and draws nothing for that group. Note: geom_violin() itself also requires violinwidth and would silently produce incorrect output in this scenario; geom_violin_pattern() makes the requirement explicit.

orientation = "y" (horizontal violins) is not supported for the pattern overlay. The base violin renders correctly, but the pattern is silently skipped. Use coord_flip() on a vertical violin as a workaround.

Pattern spacing is in millimetres. pattern_spacing = 5 means 5mm between pattern elements regardless of violin size, so density is physically consistent across violins of any width.

Examples

library(ggplot2)

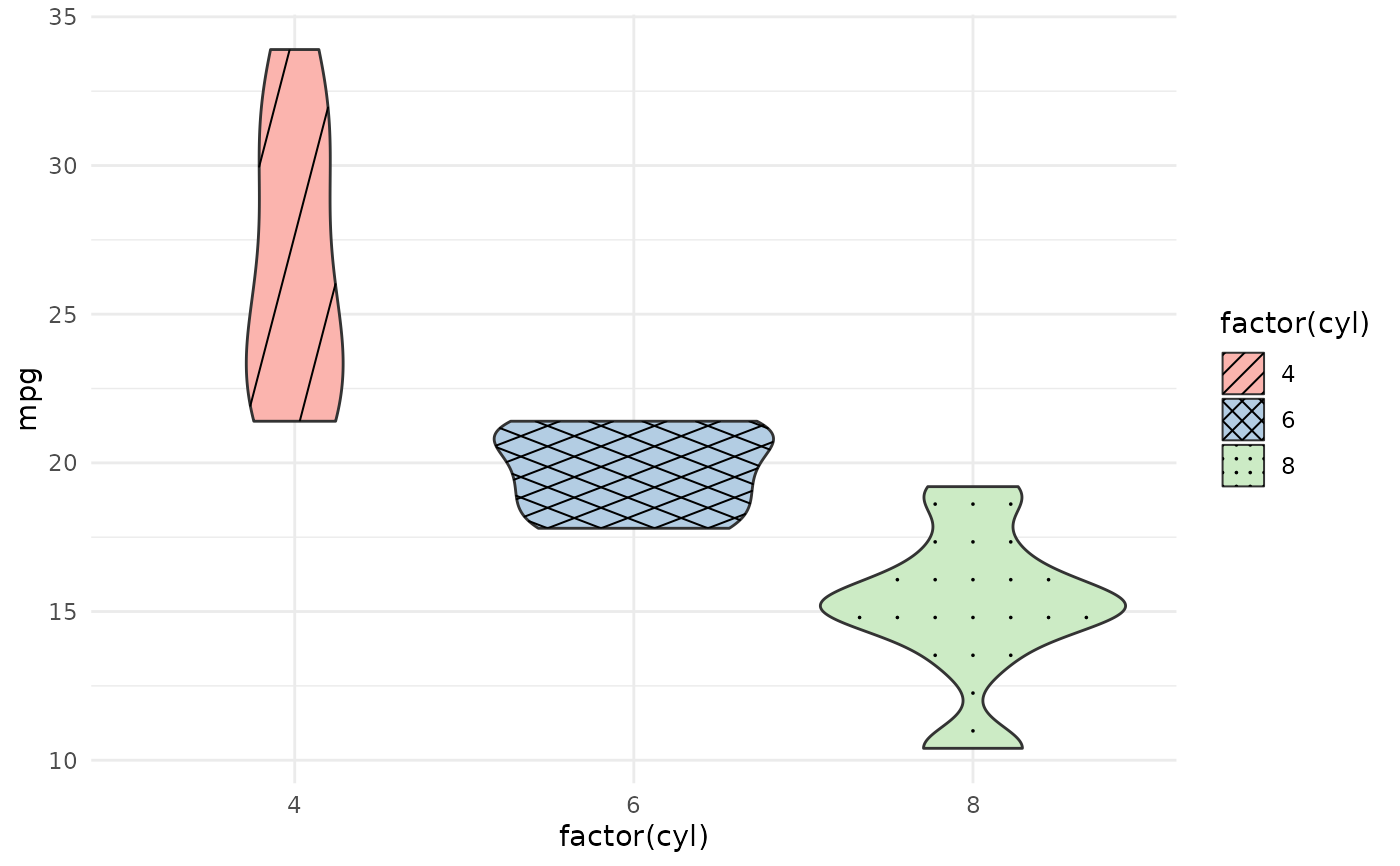

# Basic violin with hatch pattern per group
ggplot(mtcars, aes(factor(cyl), mpg, fill = factor(cyl),
                   pattern = factor(cyl))) +
  geom_violin_pattern() +
  scale_pattern_manual(values = c("hatch", "crosshatch", "dots")) +
  scale_fill_brewer(palette = "Pastel1") +
  theme_minimal()


# With quantile lines — exercises the quantile overlay path
ggplot(mtcars, aes(factor(cyl), mpg, fill = factor(cyl),
                   pattern = factor(cyl))) +
  geom_violin_pattern(
    quantile.linetype = 1,
    quantile.linewidth = 0.5,
    quantile.colour = "grey20"
  ) +
  scale_pattern_manual(values = c("hatch", "crosshatch", "dots")) +
  scale_fill_brewer(palette = "Pastel1") +
  theme_minimal()
